Detail requirements for convex and concave

If the height of a feature of a convex part in the model is less than 2 times the width (if the height is greater than 2 times the width, we call it an independent column), we call it convex detail, as shown below:
The minimum convex detail is usually determined by the accuracy of the printer. The minimum height/width requirements for convex details of different materials are as follows (for example, the height and width of convex details of 8000 resin materials must be greater than 1.2mm to be printed clearly):

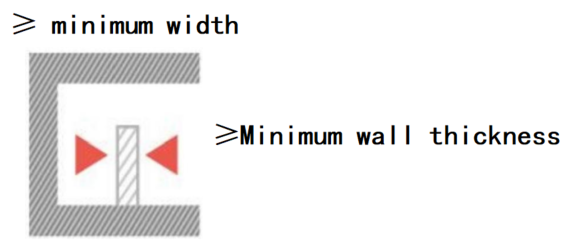

The processes such as support removal, grinding and sand blasting determine the minimum wall thickness requirements for columns made of different materials. The minimum wall thickness requirements for columns are as follows:

Material Science8000 resin8500 high toughness resinTransparent photosensitive resinWhite nylonGrey fiberglassGrey ABSAlSi10Mg aluminum alloy
Height Width1.2mm1.5mm0.5mm1mm1mm0.8mm0.5mm

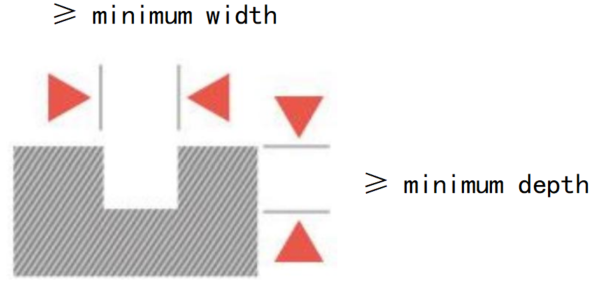

The minimum concave detail is usually determined by the accuracy of the printer. The minimum depth/width requirements for concave details of different materials are as follows (for example, the depth and width of concave details of 8000 resin materials must be greater than 1mm to be printed clearly):

Material Science8000 resin8500 high toughness resinTransparent photosensitive resinWhite nylonGrey fiberglassGrey ABSAlSi10Mg aluminum alloy
Depth Width1mm1mm0.5mm1mm1mm0.8mm0.5mm

当凹状细节的深度或宽度小于最小凹状细节要求时,将无法准确地打印,无法进行打磨、喷洒等后处理。此时建议您增加深度/宽度、去除该部分或者选择其他合适的材料。
